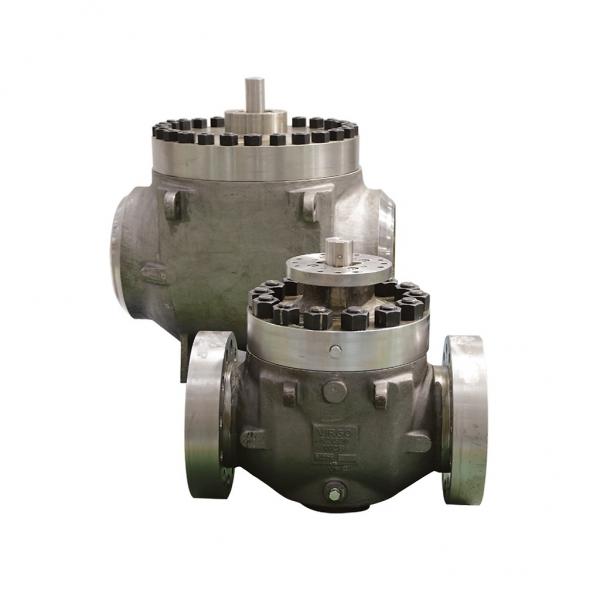

The Virgo Top Entry Trunnion-Mounted Ball Valve is a robust API 6D, one piece body design with bi-directional sealing. These valves are designed for inline field reparability and a single piece body that is more resistant to pipeline stresses. Valves are available in sizes from 2 inches up to 60 inches and pressure classes from ANSI 150# to 2500#, the valve can be supplied in a variety of materials, body and trim configurations, and end connections to meet every need.

Product Range and Configurations

• 2” through 60”, Class 150#-2500#, API 10000
• Top entry
• One piece cast or forged
• Carbon, low temp carbon, stainless, duplex and alloy
• Full and reduced ports
• Soft and metal seat

Design Specifications

• API 6D
• API 6D/598 tested
• NACE MR 0175 compliant
• SIL 3 certified
• API 607/6FA fire-safe

Key Features

• Double Block and Bleed
• Anti Blow Out Stem
• Anti-Static Device for Electrical Continuity
• Self Lubricated Bearings
• Multiple Stem Sealing for low fugitive emissions
