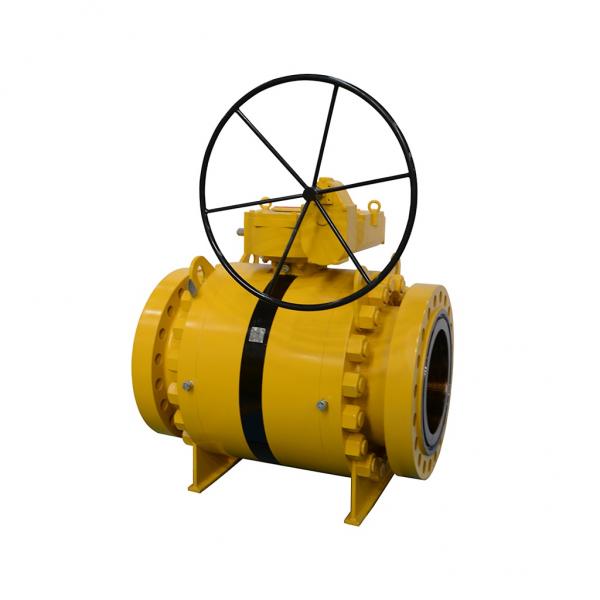

The Virgo Trunnion-Mounted Ball Valve is a robust API 6D, two or three piece cast or forged body design with bi-directional sealing. Valve are available in sizes from 2 inches up to 60 inches and pressure classes from ANSI 150# to 2500#, the valves can be supplied in a variety of materials, body and trim configurations, and end connections to meet every need.

Product Range and Configurations

• 2” through 60”, Class 150# to 2500#, API 10000
• Side entry, top entry
• 2/3 piece cast, 3 piece forged or fully welded body design
• Carbon, low temp carbon, stainless, duplex and alloy
• Full and reduced ports
• Soft or metal seat

Design Specifications

• API 6D/ASME, ASME B16.34 design, API 6A, BS EN ISO 17292
• API 6D/598 tested
• NACE MR 0175 compliant*
• SIL 3 certified
• API 607/6FA fire-safe

Key Features

• Extra wall thickness for increased corrosion allowance
• Low operating torques for easy automation
• Bi-directional Zero leakage
• Anti-static device maximizes safety
• ISO 5211 Mounting allows for easy automation
• Double Block and Bleed
• Anti Blow Out Stem
• Multiple Stem Seal for low fugitive emissions
